ID: 2563 Open

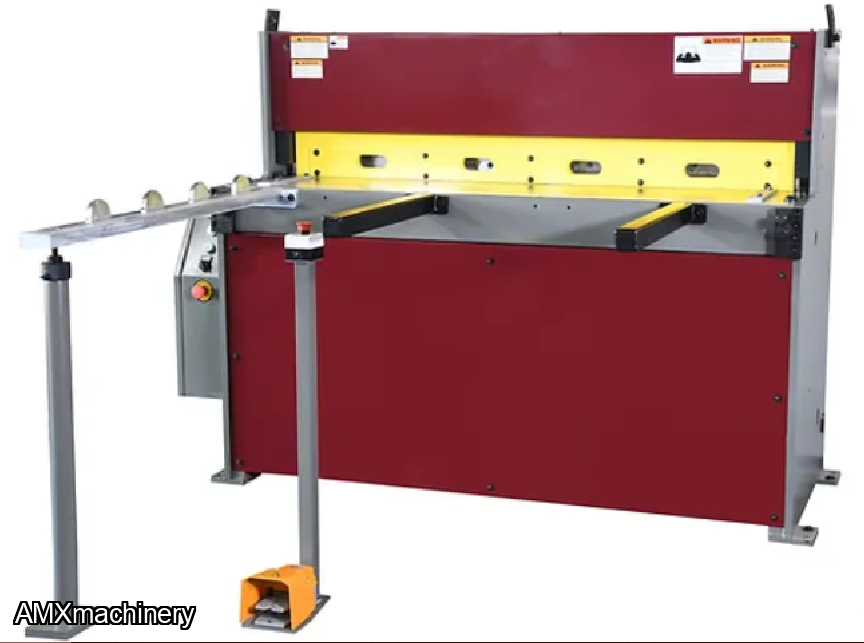

CORTADORA DE METAL HIDRAULICA 4' x 10 Ga

CORTADORA DE METAL HIDRAULICA 4' x 10 Ga

AMXmachine1

Contact Seller
Description
CORTADORA DE METAL HIDRAULICA 4' x 10 Ga                      PARTE: 2GM-HS-0410MD


  • Taiwan machines
  • ISO 9001 certified
  • HD all steel construction for maximum rigidity
  • German logic quiet Rexroth hydraulic system
  • Adjustable stroke from 16-20 strokes per minute
  • 60” long squaring arm with inch / mm scale
  • Spring hold-downs
  • High grade carbon/chrome alloy steel blades and hardened to 62 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
  • Full length with full view finger guard
  • Front supports and (2) side gauges
  • Safety type foot pedal control
  • Jog, single continuous auto operation modes
  • One year warranty for parts
  • 26”  manual back gauge with inch/metric dual scale & one side operated hand wheel
  • 60” long squaring arm with inch / mm scale
  • 2 each 24” front support arms
  • 2 each 14” Side gauges with inlaid inch/metric dual scale
  • Spring independent hold-downs
  • Full length finger guard
  • Removable safety foot pedal control
  • One set of blades

Cutting Capacity:

Mild Steel

Stainless Steel

Minimum Capacity



4' x 10Ga.

4' x 14Ga.

24 Ga.

Blade Length52"
Strokes per minute adjustable16-20
